PP Compression Fitting Female Tee

1. Dia: DN20mmx1/2" - DN110mmx4".
2. Pressure Class: SDR17, SDR11.
3. Pressure Class: PN10, PN16.
4. Packing: Packaged by cartons or bags.
5. Delivery: In Stock, Quick Deliery.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

PP compression female thread tee is made of polypropylene material. The female tee is designed to connect PE pipe to a male fitting. The mechanical connection can be done easily and quickly without glue or butt fusion.

Details of Polypropylene(PP) compression Fitting Female Tee

Products details information Company/factory strength
Product name Polypropylene(PP) conpression fittings Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-110mm(1/2 inch- 4 inch) Delivery time In stock, Quick deliery
Pressure class SDR17, SDR11, PN10, PN16 Quality QA & QC system, Ensure traceability of each process
Raw material PP Warranty 50 years with normal use
Application Horticultural greening or agricultural irrigation systems, Water treatment systems, Water supply systems for public works, for living quarters and factories Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Category Thread male and female fitting,  Elbows, tees, Couplings, Reducers, Female and male tees, Female and male elbows, Clamps, Ball valves and installation tools... Test/Inspection National standard laboratory, Pre-delivery inspection
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of Polypropylene(PP) compression fittings

PP compression pipe fittings are a kind of pipe fittings that are mechanically connected. To ensure a perfect hydraulic seal in pressurized distribution structures, PP compression fittings require physical force to form a seal or create alignment.

(HDPE) pipe or PVC pipe, which are typically used in the transfer of liquids and drinking water at pressures up to 16 bar. It is also suitable for emergency repairs and high-quality projects. The materials we use are resistant to UV rays and many chemicals. We have developed a socket-type connection method that does not require hot melt to reduce labor and time costs.

Polypropylene-PP Compression fittings DN20-110mm PN10 to PN16 for Water Application

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Polypropylene(PP) Compression Fittings

  • PP Compression Fitting Coupling

  • PP Compression Fitting 90 Deg Elbow

  • PP Compression Fitting Adding Exit

  • PP Compression Fitting Elbow Wall Plate

  • PP Compression Fitting Female Tee

  • PP Compression Fitting Female Thread Elbow

  • PP Compression Fitting Female True Union Ball Valve

  • PP Compression Fitting Flange

  • PP Compression Fitting Male Adaptor

  • PP Compression Fitting Male Thread Elbow

  • PP Compression Fitting Male Theraded Tee

  • PP Compression Fitting Male True Union Ball Valve

  • PP Compression Fitting Plug

  • PP Compression Fitting Reducing Couplings

  • PP Compression Fitting Reducing Tee

  • PP Compression Fitting Tee

  • PP Compression Fitting True Union Ball Valve

  • PP Compression Fitting True Union Ball Valve

Characteristics And Advantages of Polypropylene(PP) compression fittings:

  • 1. There are locking hoops: stepped ring seal and other components inside. They are scientific designs with the strong fastness and good sealing.
  • 2. Impact resistance: The characteristics of the raw materials make the pipe fittings have strong impact resistance and will not break when subjected to external impacts.
  • 3. Cold resistance: It can be used safely in the temperature range of -40~60℃, and can be used in winter construction.
  • 4. Flexibility: Easy to connect, disassemble and recycle.
  • 5. Reduce cost: Excellent quality at an economical price. Easy to transport and construct, which can save transportation and maintenance costs.
  • 6. High-quality raw materials: It's high temperature resistance and UV protection, pressure resistance, corrosion resistance, acid and alkali resistance.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

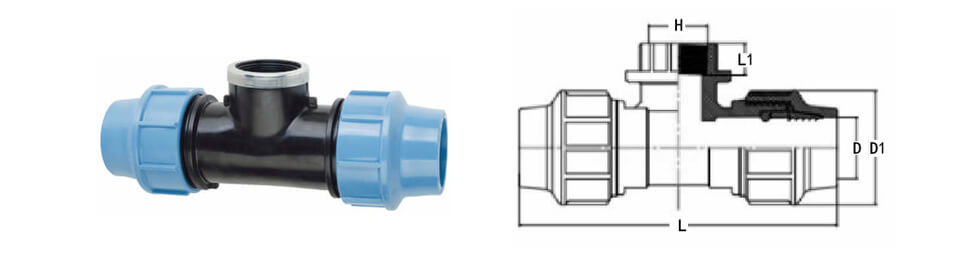

Specification of PP Compression Fitting Female Tee

Code Size(mm) D(mm) DN D1(mm) L(mm) L1(mm) M
PP Compression Fitting Female Tee 20*1/2″ 20 15*15 46 140 16 1/2″
20*3/4″ 20 15*20 46 140 18 3/4″
25*1/2″ 25 20*15 55 164 16 1/2″
25*3/4″ 25 20*20 55 164 18 3/4″
25*1″ 25 20*25 55 164 20 1″
32*1/2″ 32 25*15 63 190 16 1/2″
32*3/4″ 32 25*20 63 190 18 3/4″
32*1″ 32 25*25 63 190 20 1″
32*1-1/4″ 32 25*32 63 190 25 1-1/4″
40*1″ 40 32*25 80 218 20 1″
40*1-1/4″ 40 32*32 80 218 25 1-1/4″
40*1-1/2″ 40 32*40 80 218 27 1-1/2″
50*1-1/4″ 50 40*32 96 268 25 1-1/4″
50*1-1/2″ 50 40*40 96 268 27 1-1/2″
50*2″ 50 40*50 96 268 30 2″
63*1-1/4″ 63 50*32 115 334 25 1-1/4″
63*1-1/2″ 63 50*40 115 334 27 1-1/2″
63*2″ 63 50*50 115 334 30 2″
63*2-1/2″ 63 50*65 115 334 33 2-1/2″
75*2″ 75 65*50 129 396 30 2″
75*2-1/2″ 75 65*65 129 396 33 2-1/2″
75*3″ 75 65*80 129 396 35 3″
90*3″ 90.0 80*80 155.0 440.0 35.0 3″
90*4″ 90.0 80*100 155.0 440.0 40.0 4″
110*3″ 110.0 100*80 184.0 556.0 40.0 3″
110*4″ 110.0 100*100 184.0 556.0 40.0 4″

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Butt Fusion Flange Adapter (Stub End )

  • HDPE Butt Fusion Reducing Coupler

  • HDPE Butt Fusion Tee

  • HDPE Butt Fusion Cross

  • HDPE Butt Fusion 90 Degree Elbow

  • HDPE Y Tee

  • HDPE Electrofusion Stub End(Flange Adaptor) with bar code

  • HDPE Electrofusion Equal Tee with bar code

  • HDPE Tapping Tee with bar code

  • HDPE Eccentric Reducer SDR9, SDR7.4

  • HDPE Stub End SDR9, SDR7.4

  • HDPE Mud Tee(SDR9-SDR6)

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Polypropylene(PP) compression fittings



The following are the specifications of Polypropylene(PP) compression fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
