HDPE Flanges and HDPE Blind

1. Dia: DN20-280mm (2 inch-12 inch).
2. Pressure Class: SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN10, PN12.5, PN16, PN20, PN25, PN32.
4. Packing: Packaged by cartons or bags.
5. Delivery: 5-10 days depending on the total quantity.
6. Product inspection: Raw material inspection, finished product inspection. Third party inspection upon clients request.

DEF Pipeline can provide HDPE high pressure customiazed pipe fittings of various projects and specifications according to ASTM, ISO 4427, EN12201, EN1555 and other standards, with competitive prices high quality and reliable connection.

Details of High Pressure High Density Polyethylene (HDPE) fittings

Products details information Company/factory strength
Product name High pressure high density polyethylene (HDPE) fittings Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN50-2000mm(2 inch-80 inch) Delivery time In stock, Quick deliery
Pressure class SDR26 to SDR6; PN6 to PN32 Quality QA & QC system, Ensure traceability of each process
Raw material PE100, PE4710, PE3608, PE100RC... Warranty 50 years with normal use
Application Drinking water, Fresh water, Drainage, Oil and gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... Test/Inspection National standard laboratory, Pre-delivery inspection
Category Concentric reducer, Eccentric reducer, Equal tee, Mud tee, Reducer tee, Flange adaptor/stub End, Spigot end cap, Flanges and HDPE blind flange, HDPE hollow bar, HDPE solid rod, 90 deg elbow, Sweep bends Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Description of High pressure High Density Polyethylene (HDPE) fittings

High pressure High Density Polyethylene (HDPE) fittings are made from the thick-walled pipe blanks and bars. The maximum outer diameter of the thick-walled tube blank is 2300mm, and the maximum outer diameter of the bar is 1450mm. Thick-walled pipe blanks and bars can make for various pipe fittings , which are difficult to process by injection molding, so as to solve many problems encountered in the design, construction and installation of PE pipes.

It can be produced and processed according to ASTM, ISO 4427, EN12201, EN1555 and other standards, concentric reducer, eccentric reducer, tee, mud tee, pipe cap flange and other customized pipe fittings, etc., can be customized according to drawings. Range: 50-2000mm, pressure sdr17-sdr6, the pipe fittings produced by our company have been widely used in the field of gas and water supply.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

High Pressure HDPE Fittings(SDR9-SDR6)

  • HDPE Flange Adaptor/Stub End(SDR9-SDR6)

  • HDPE Concentric Reducer(SDR9-SDR6)

  • HDPE Eccentric Reducer(SDR9-SDR6)

  • HDPE Equal Tee(SDR9-SDR6)

  • HDPE Mud Tee(SDR9-SDR6)

  • HDPE Reducer Tee(SDR9-SDR6)

  • HDPE Spigot End Cap(SDR9-SDR6)

  • HDPE Sweep Bends(SDR9-SDR6)

  • HDPE Elbow(SDR9-SDR6)

  • HDPE Hollow Bar

  • HDPE Solid Rod

  • HDPE Flanges and HDPE Blind

Characteristics And Advantages of High pressure High Density Polyethylene (HDPE) fittings:

  • 1. No leakage: The connection is reliable, and the strength of the butt fusion interface between the pipe fitting and the pipe is as good as the pipe itself, and has the same life expectancy.
  • 2. Non-toxic: do not scale, do not breed bacteria or contain heavy metal additives.
  • 3. Wear resistance: It has excellent wear resistance. Since its inner wall is lubricated and the friction coefficient is extremely low.
  • 4. Corrosion resistance: PE pipe fittings are made of inert materials. They has good corrosion resistance to galvanic corrosion such as electrical current, salts in the soil, acids and water vapor. The pipe fittings can be used immediately without any anti-corrosion treatment.
  • 5. Shock resistance: good flexibility, high impact strength, strong shock resistance, can be used in many applications.
  • 6. Reduce project costs: The welding process at the interface is simple, the connection of pipe fittings is fast and convenient, and the total project cost is low.
  • 7. Light weight: They are convenient to transport and install with long service life.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

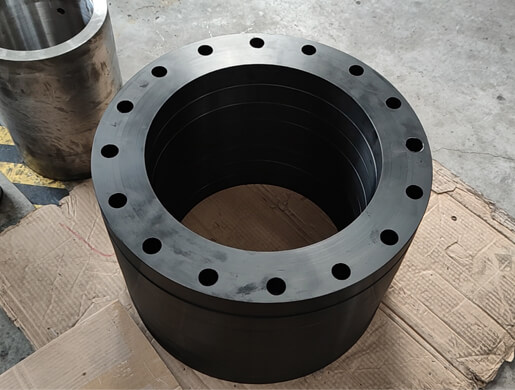

Specification of HDPE Flanges and HDPE Blind (SDR9-SDR6)

HDPE Flanges and HDPE Blind
The size of the pipe fitting is formulated by our company according to the actual situation. Other sizes can be customized according to the customer's data. The specifications and non-standard specifications not included in the table, please consult us separately.
DIAMETER PIPE EQUIVALENTE D k d1 b
mm inch mm mm mm mm
20 1 1/2 88.9 60.3 32 15
25 3/4 98.6 69.8 38 18
32 1 108 79.4 45 20
40 1 1/2 117.3 88.9 55 25
50 1 1/2 127 98.4 66 28
63 2 152.4 120.8 78 30
75 2 1/2 177.8 139.7 92 35
90 3 190.5 152.4 108 38
110 4 228.6 190.5 128 40
125 5 254 215.9 135 45
140 5 1/2 254 215.9 158 50
160 6 279.4 241.3 178 56
180 6 279.4 241.3 188 61
200 8 342.9 298.4 235 66
225 8 342.9 298.4 238 67
250 10 406.4 362 288 70
280 10 406.4 362 294 75

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Butt Fusion Flange Adapter (Stub End )

  • HDPE Butt Fusion Reducing Coupler

  • HDPE Butt Fusion Tee

  • HDPE Butt Fusion Cross

  • HDPE Butt Fusion 90 Degree Elbow

  • HDPE Y Tee

  • HDPE Electrofusion Stub End(Flange Adaptor) with bar code

  • HDPE Electrofusion Equal Tee with bar code

  • HDPE Tapping Tee with bar code

  • Fabricated HDPE Tee

  • Fabricated HDPE 90 Degree Elbow

  • Fabricated HDPE Y Tee

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

High Pressure HDPE fittings SDR9, SDR7.4, SDR6...



The following are the specifications of High Pressure HDPE fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
