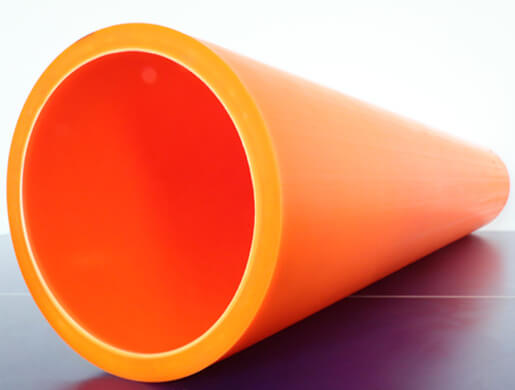

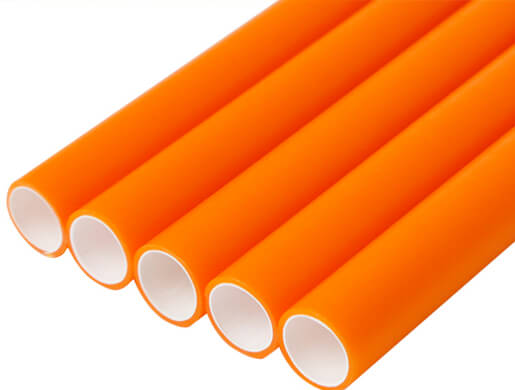

HDPE Pipe for Cable Protection

1. Dia: DN20-2000mm (1/2 inch-80 inch).
2. Pressure Class: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.

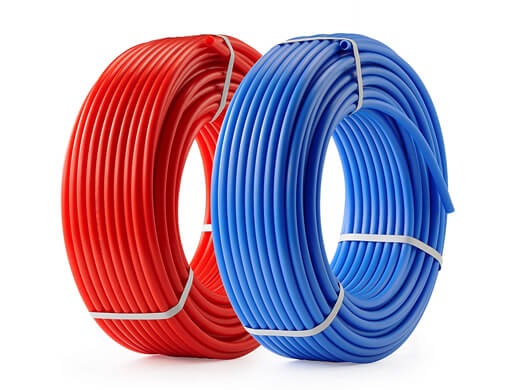

4. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
5. Delivery: 5-10 days depending on the total quantity.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

Def pipeline provides pipelines for electrical and telecommunications networks. We produce a wide variety of protection pipes in HDPE and PVC for telecommunication and power cables, as well as fiber optic cable protection, which can also be used for underground and underwater, onshore applications.

Details of High Density Polyethylene (HDPE) Cable Protection Pipe and Fitting

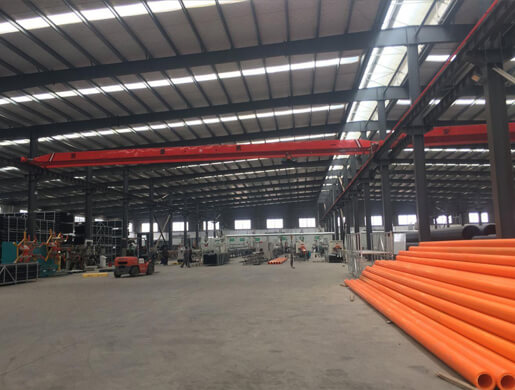

Products details information Company/factory strength
Product name High Density Polyethylene (HDPE) cable protection pipe and fitting Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-2000mm(1/2 inch-80 inch) Delivery time 5-10 days, depending on the quantity
Pressure class SDR41 to SDR6; PN4 to PN32 Test/inspection National standard laboratory, Pre-delivery inspection
Standards ISO4427, ASTMD3035, ASTM F714, EN12201 Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Management Effective 8S management system

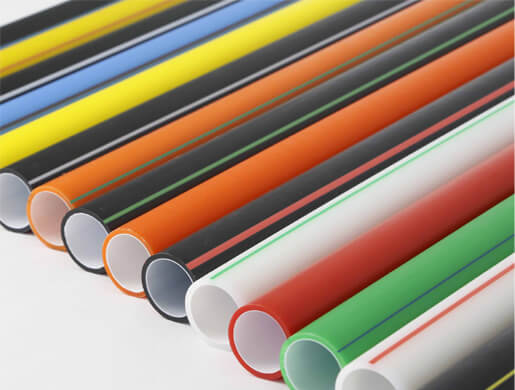

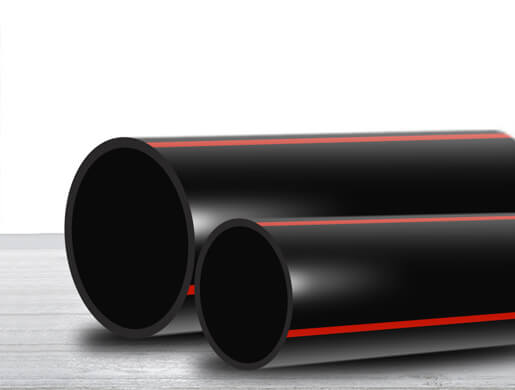

Color Black with blue stripes, Grey, Orange, White, or as client’s requirement Warranty 50 years with normal use
Packing 5.8m or 11.8m/length, 100-200m/roll, for pipe. Cartons or bags, for fitting(customizable) Quality QA & QC system, Ensure traceability of each process
Application Power, Site lighting, Signal and control, Renewable energy... No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Description of High Density Polyethylene (HDPE) Cable Protection Pipe and Fitting

Def Pipeline provide all kinds of cable protection pipes and fitting in all sizes.

The HDPE cable protection pipes and fittings of DEF are made of high-quality high-density polyethylene resin as the main raw material with appropriate additives, and processed by extrusion. The pipes have the characteristics of impact resistance, corrosion resistance, anti-aging, flexibility, high tensile strength, long service life, excellent electrical insulation performance, etc. HDPE conduit can be installed through horizontal directional drilling (HDD), traditional trenching, etc. And been used as buried high-voltage cables, street lamp cable protection sleeves etc.

HDPE fittings

  • HDPE Butt Fusion welding Fittings

  • HDPE Socket Fusion Fittings

  • HDPE Fabricated Segments Fittings

  • HDPE Electrofusion Fittings with bar code

  • Polypropylene(PP) Compression Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

Advantages of High Density Polyethylene (HDPE) Cable Protection Pipe and Fitting：

  • 1. Good electrical insulation performance: long service life (more than 50 years of buried pipes), durable and safe.
  • 2. Continuous Lengths: We offer our HDPE conduit on reels to provide long, continuous lengths that are easy to transport and install.
  • 3. Flexibility: good toughness and deflection. Small diameter pipes can be bent arbitrarily. PE pipe is a kind of high toughness pipe, the elongation at break exceeds 500%. It has strong adaptability to uneven settlement and dislocation of the foundation, and has excellent seismic performance.
  • 4. Durability: Our HDPE conduit features unmatched toughness and high impact resistance. Using high quality raw materials ensures that DEF Pipeline conduit won’t become brittle or crack with age.
  • 5. Corrosion resistance, aging resistance, wear resistance, and long service life: Under adverse geological environment conditions such as coastal areas and saline-alkali areas, metal pipes or other pipes must be treated with anti-corrosion. Which increase the cost and the effect is not guarantee. PE pipes have a wide range of geological adaptability since they are resistant to erosion by various media such as acid, alkali, salt, oil and electricity.
  • 6. Low coefficient of friction (COF): smooth pipe wall, small friction coefficient, easy cable routing to reach the high working efficiency.
  • 7. Thermal Resistance: Def Pipeline conduits are rated to hold electrical cables with operating temperatures up to 90° C (194° F). Electrical HDPE conduits retain toughness and ductility at cold temperatures down to -40°C.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Specifications of High Density Polyethylene (HDPE) Cable Protection Pipe

ISO 4427 Pipe Series S 16 S 12,5 S 10 S 8 S 6,3 S 5 S 4 S 3.2
ASTM F714 SDR SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4
Nominal Pressure PE 100 PN5 PN6 PN8 PN10 PN12.5 PN16 PN20 PN25

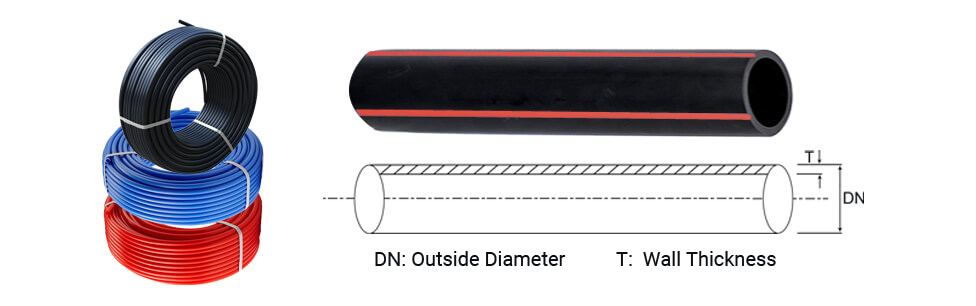

Nominal Size DN (mm) Equiv Size (in) Wall Thickness(mm)
16 2 2.3
20 0.79 1.5 2 2.3 3
25 0.98 0.76 0.8 1.2 1.5 2 2.3 3 3.5
32 1.26 0.97 1 1.5 2 2.4 3 3.6 4.4
40 1.57 1.21 1.2 2 2.4 3 3.7 4.5 5.5
50 1.97 1.52 2 2.4 3 3.7 4.6 5.6 6.9
63 2.48 1.91 2.5 3 3.8 4.7 5.8 7.1 8.6
75 2.95 2.27 2.9 3.6 4.5 5.6 6.8 8.4 10.3
90 3.54 2.73 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4.33 3.33 4.2 5.3 6.6 8.1 10 12.3 15.1
125 4.92 3.79 4.8 6 7.4 9.2 11.4 14 17.1
140 5.51 4.24 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6.3 4.85 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 7.09 5.45 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 7.87 6.06 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8.86 6.82 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 9.84 7.58 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 11.02 8.48 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12.4 9.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 13.98 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 15.75 12.3 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 17.72 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 19.69 15.3 19.1 23.9 29.7 36.8 45.4 55.8 67.6
560 22.05 17.2 21.4 26.7 33.2 41.2 50.8 62.5 75.7
630 24.8 19.3 24.1 30 37.4 46.3 57.2 70.3 85.1
710 27.95 21.8 27.2 33.9 42.1 52.2 64.5 79.3 95.9
800 31.5 24.5 30.6 38.1 47.4 58.8 72.6 89.3
900 35.43 27.6 34.4 42.9 53.3 66.2 81.7
1000 39.37 30.6 38.2 47.7 59.3 72.5 90.2
1200 47.24 36.7 45.9 57.2 67.9 88.2
1400 55.12 42.9 53.5 66.7 82.4 102.9
1600 62.99 61.2 76.2 94.1 117.6
1800 70.86 69.1 85.7 105.9
2000 78.74 76.9 95.2 117.6

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Pipe for Water and Gas

  • HDPE Pipe for Drinking Water

  • HDPE Pipe for Natural Gas & Oil

  • HDPE Pipe for fire fighting applications

  • HDPE Pipe for Drainage/ Sewer

  • PE100-RC HDPE Pipes for Water & Gas Gas

  • HDPE Pipe for Cable Protection

  • HDPE Pipe for Mining

  • HDPE Pipe for Dredging

  • HDPE Pipe for Irrigation

  • HDPE Silicon Core Pipe

  • HDPE Trenchless Pipe For HDD

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

High Density Polyethylene (HDPE) Cable Protection Pipes and Fittings



The following are the specifications of High Density Polyethylene (HDPE) Cable Protection Pipes and Fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
