HDPE Socket Fusion Fittings

1. Dia: DN20-110mm(1/2 inch-4 inch).
2. Pressure Class: SDR17, SDR11.
3. Pressure Class: PN10,PN16.
4. Packing: Packaged by cartons or bags.
5. Delivery: In Stock, Quick Deliery.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

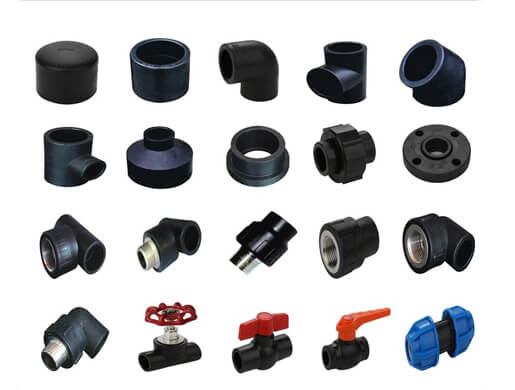

HDPE Socket Fusion Fitting : Coupler/Coupling, Reducer/ Reducing Coupler, Tee, Reducer Tee, Stub End, End Cap, 45 deg elbow, 90 deg elbow

HDPE Threaded- Socket Fusion Fitting : Female coupler, Male coupler, Lifting Stop Valve, Female Tee, Male Tee, Female Elbow 90 Deg, PP Ball Valves, Male Elbow 90 Deg, Stop Valve, Female Union

Details of High Density Polyethylene (HDPE) socket fusion fittings

Products details information Company/factory strength
Product name High Density Polyethylene (HDPE) socket fusion fittings Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-110mm(1/2 inch-4 inch) Delivery time In stock, Quick deliery
Pressure class SDR17, SDR11 PN10, PN16 Quality QA & QC system, Ensure traceability of each process
Raw material PE100, PE4710, PE3608, PE100RC... Warranty 50 years with normal use
Application Drinking water, Fresh water, Drainage, Oil and gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting... Test/Inspection National standard laboratory, Pre-delivery inspection
Category Coupler/coupling, Reducer/reducing coupler, Tee, Reducer tee, Stub end, End cap, 45 deg elbow, 90 deg elbow... Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Color Black, Blueor or others colors Management Effective 8S management system
Packing Packaged by cartons or bags No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Description of High Density Polyethylene (HDPE) socket fusion fittings

High-quality fittings will enable reliable, high-performance connections and long service life.

Due to the small diameter of the pipe and the thin wall thickness, the pipe smaller than OD63mm is not suitable for butt fusion, and is more suitable for socket fusion. The size range of socket fittings is 20-110mm.

Characteristics And Advantages of High Density Polyethylene (HDPE) socket fusion fittings：

  • 1. No leakage: The connection is reliable, and the strength of the butt fusion interface between the pipe fitting and the pipe is as good as the pipe itself, and has the same life expectancy.
  • 2. Non-toxic: do not scale, do not breed bacteria or contain heavy metal additives.
  • 3. Wear resistance: It has excellent wear resistance. Since its inner wall is lubricated and the friction coefficient is extremely low.
  • 4. Corrosion resistance: PE pipe fittings are made of inert materials. They has good corrosion resistance to galvanic corrosion such as electrical current, salts in the soil, acids and water vapor. The pipe fittings can be used immediately without any anti-corrosion treatment.
  • 5. Shock resistance: good flexibility, high impact strength, strong shock resistance, can be used in many applications.
  • 6. Reduce project costs: The welding process at the interface is simple, the connection of pipe fittings is fast and convenient, and the total project cost is low.
  • 7. Light weight: They are convenient to transport and install with long service life.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Specification of High Density Polyethylene (HDPE) socket fusion fittings

Fitting Type Specified Fitting Diameter(mm) Pressure Rates
Socket Fusion Fitting  Coupler/Coupling DN20-110mm PN10, PN16
Reducer/ Reducing Coupler DN32*20 to DN110*90 PN10, PN16
Tee DN20-110mm PN10, PN16
Reducer Tee DN25*20 to DN110*90 PN10, PN16
Stub End DN20-110mm PN10, PN16
End Cap DN20-110mm PN10, PN16
45 deg elbow DN20-110mm PN10, PN16
90 deg elbow DN20-110mm PN10, PN16
Threaded- Socket Fusion Fitting  Female coupler DN20-110mm (1/2'-4') PN10, PN16
Male coupler DN20-110mm (1/2'-4') PN10, PN16
Lifting Stop Valve DN20-110mm (1/2'-4') PN10, PN16
Female Tee DN20-63mm(1/2'-2') PN10, PN16
Male Tee DN20-63mm(1/2'-2') PN10, PN16
Female Elbow 90 Deg DN20-63mm(1/2'-2') PN10, PN16
PP Ball Valves DN20-63mm(1/2'-2') PN10, PN16
Male Elbow 90 Deg DN20-63mm (1/2'-2') PN10, PN16
Stop Valve DN20-63mm
Female Union DN20-63mm (1/2'-2') PN10, PN16

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Butt Fusion Flange Adapter (Stub End )

  • HDPE Butt Fusion Reducing Coupler

  • HDPE Butt Fusion Tee

  • HDPE Butt Fusion Cross

  • HDPE Butt Fusion 90 Degree Elbow

  • HDPE Y Tee

  • HDPE Eccentric Reducer(SDR9-SDR6)

  • HDPE Flange Adaptor/Stub End(SDR9-SDR6)

  • HDPE Mud Tee(SDR9-SDR6)

  • Fabricated HDPE Tee

  • Fabricated HDPE 90 Degree Elbow

  • Fabricated HDPE Y Tee

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

High Density Polyethylene (HDPE) socket fusion fittings



The following are the specifications of High Density Polyethylene (HDPE) socket fusion fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
