HDPE Pipe Butt Fusion Welding Machine

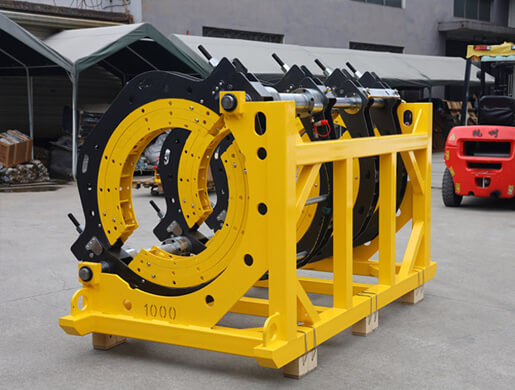

Details of Butt Fusion Welding Machine.

The hot-melt principle of the butt fusion machine is heating the surface of two plastic pipes to a specified temperature and then fusing them by pressure. The hydraulic automatic butt fusion machine is mainly composed of four parts, the heating plate with electronic temperature control, the milling machine, the hydraulic electric console, the frame and the fixture.

Butt fusion machines have the following categories:

1. Hand crank series. 63-160, 63-200, 90-250 model (coupling design, fully geared)

2. Hand push series. 63-160, 63-200 model (pinion design, economical).

3. Hydraulic semi-automatic series. 63-160, 63-200, 90-250, 110-315, 280-450, 400-630. 5000-800. 800-1000, 1000-1200 model (more reasonable welding range can be customized according to customer needs)

4. Hydraulic butt fusion automatic series. 160, 200, 315, 400 models (more reasonable welding range can be customized according to customer needs).

5. Fully automatic electrofusion series. 200 and 315 model.

6. Tools, rotary scraper to remove the oxide layer, chipless cutter, gantry cutter and chamferer.

7. Various specifications of digital display temperature control heating plate.

8. All kinds of butt fusion machine hardware, accessories and fixtures.

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.

Steps of butt welding fusion:

1. Minimize the dragging resistance, e.g. pipe rolling.

2. Tighten the spigot end of the pipe and pipe fitting by the welding machine.

3. Clean the spigot end.

4. Check whether the welding machine matches the pipe diameter and the butting cycle or not.

5. Move the movable jaw, putting the pipe against the facer and cut. When the end of the pipe and fitting is smooth and parallel to each other for accessible joint, and within the allowed error range, the facer cutting work is finished.

6. Check whether the paint coat of heating plate surface is complete and no scratch.

7. Check whether the temperature of the heating plate is right.

8. Put the heater between the two pipe ends, and make the pipes against the machine close the heater, then apply the pressure until the fused flanging reaches the designed width.

9. After the endothermic time is reached, move the mowable jaw backward, and remove the heater. Check the fused ends quickly,ensure that the heater doesn't damage the fused ends, then move the jaw again, make the spigot ends joint.

Advantages of HDPE Pipe Butt Fusion Welding Machine：

• 1. The heating plate adopts a special electronic temperature control device for temperature control, and the surface temperature is uniform.
• 2. The surface of the heating plate is coated with non-stick material.
• 3. The whole machine and fixture frame have good rigidity with reasonable structure design for conventional construction.
• 4. The third main fixture of the frame can be repositioned, which can easily weld the pipe with pipe fittings such as elbows and tees.
• 5. The hydraulic and temperature control systems are designed with integrated blocks with compact structures. The temperature and pressure parameters are displayed on the same operation interface, which is accurate and intuitive. It has the function of maintaining pressure, which can keep the pressure stable when the motor is turned off, with reliable performance and simple operation.
• 6. The heat absorption time and cooling time can be set separately, and the alarm prompts when the timing is over.
• 7. The hydraulic part has the function of overheating and overload protection.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com.   Or   (WhatsApp):  +86 13298353566.
