HDPE Pipe for Dredging

1. Dia: DN110-2000mm(4 inch-80 inch).
2. Pressure Class: SDR41, SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11, SDR9, SDR7.4, SDR6.
3. Pressure Class: PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, PN25, PN32.

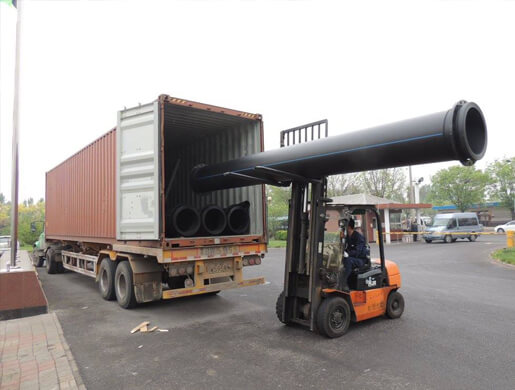

4. Packing: 11.8m, 11.9m, 5.8m, or 5.9m/pcs for straight, 100-200m by coils for DN20-90mm.
5. Delivery: 5-10 days depending on the total quantity.
6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send E-mail Inquiry Now
Introduction Specifications Products Technical

HDPE dredging pipe is widely used in dredging projects, waterways, wetlands, land reclamation, dewater sludge, lake restoration, flooding the river and many other applications.

Details of High Density Polyethylene Dredging Pipe and Fitting

Products details information Company/factory strength
Product name High Density Polyethylene (HDPE) dredging pipe Production capacity 160*40ft containers/month
Brand Def pipeline(or OEM) Sample Free sample available
Dia. ranges DN20-2000mm(1/2 inch-80 inch) Delivery time 5-10 days, depending on the quantity
Pressure class SDR41 to SDR6; PN4 to PN32 Test/inspection National standard laboratory, Pre-delivery inspection
Standards ISO 4427, ASTM 3035, ASTM F714, EN12201, AS/NZS4130, DIN8074, GOST18599 Certificates ISO9001, OHSAS 18001, ISO14001, ISO45001, CE...
Raw material PE80, PE100, PE4710, PE3608, PE100RC... Management Effective 8S management system
Color Black with blue stripes, Black or others colors Warranty 50 years with normal use
Packing 5.8m or 11.8m/length with the flanges ends(customizable) Quality QA & QC system, Ensure traceability of each process
Application Dredge of mud, Mining projects, Sewage engineering... No. of employees More than 300
Matching products HDPE Butt fusion welding fitting, Socket fusion, Electro fusion welding fitting, Compression fittings, Welding machines and tools, etc. Service Research, Design, Sales, Solution providing, Test, Manufacture, Aftersales service

Customers are welcome to visit the factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Description of High Density Polyethylene (HDPE) Drainage/ Sewer Pipe and Fitting

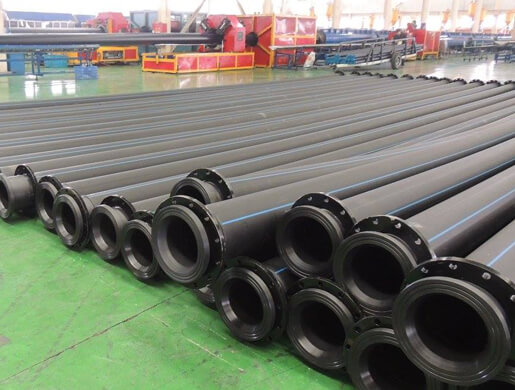

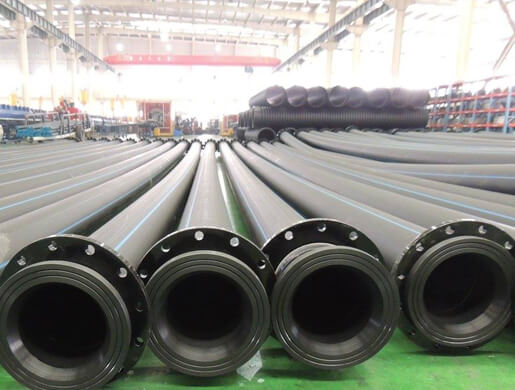

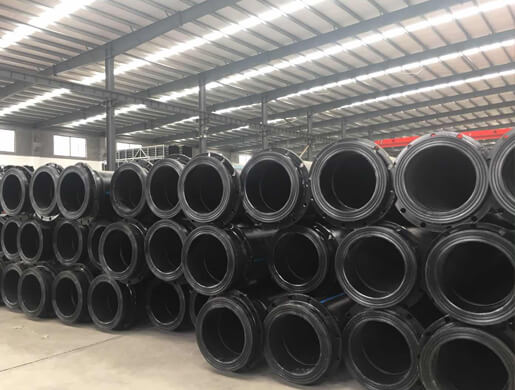

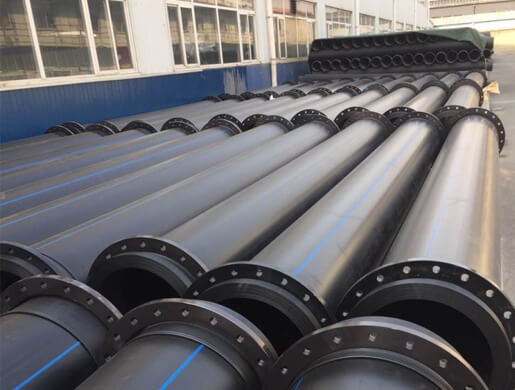

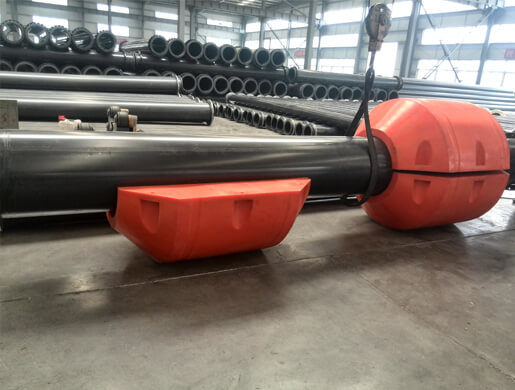

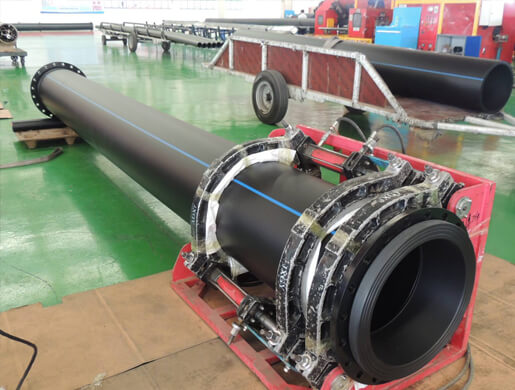

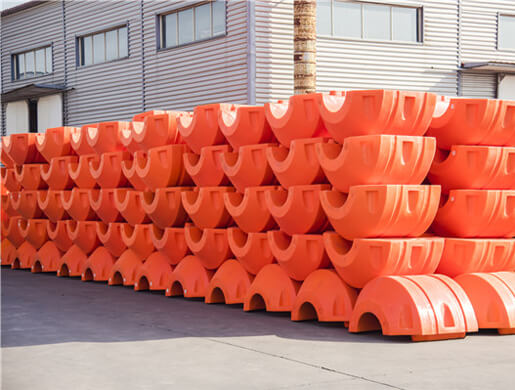

The dredging pipe is made of high-density polyethylene, which is welded by HDPE pipe, HDPE flange adapter and two steel flanges, also known as HDPE flange pipe. Dredging HDPE pipelines are used together with floats filled with polyurethane (foam) materials during water operations to widen or dig deep rivers and lakes. The main function of dredging pipelines is to clean up and transport sediment, mud and other mixed debris .

Fields of application for dredging pipes:

1. Shipping industry. It is used to clear and transport sediment in the channel and dredge the channel.

2. Metallurgical industry. It is used to transport non-ferrous metals such as ore pulp, metallurgical waste slag and lead particles.

3. Construction industry. Dredging pipes can be used for drinking and non drinking water pipes, drainage risers, sewer pipes, and mud transportation for mixing pump trucks.

4. Chemical industry. It is used to transport various fluids with severe corrosion like acids, bases, salts, etc.

5. Thermal power plants. It is used to transport fly ash dry powder and water-cement slurry.

6. Coal industry. It is used in mines, such as the coal mines to transport heavy media and coal-water slurry.

HDPE fittings

  • HDPE Butt Fusion welding Fittings

  • HDPE Socket Fusion Fittings

  • HDPE Fabricated Segments Fittings

  • HDPE Electrofusion Fittings with bar code

  • Polypropylene(PP) Compression Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

Advantages of High Density Polyethylene Dredging Pipe and Fitting:

  • 1. Excellent chemical resistance: Polyethylene is an inert material. HDPE pipes are resistant to erosion by various chemical media except for a few strong oxidants. The pipes will not be degraded by chemicals present in the soil.
  • 2. High toughness: The elongation at break of HDPE pipes is generally above 500%, the tensile strength is high, and it will not break under the impact of internal and external forces. It's suitable to use on water because of the strong wind and wave resistance.
  • 3. Easy to assemble and disassemble: The weight of the PE pipe of the same diameter is only 1/8 of the steel pipe. They are jointed by flanges and bolts, which are convenient for transportation and installation and saves costs.
  • 4. HDPE pipe has Excellent flexible and resistance to scratches ability.
  • 5. Excellent smoothness and wear resistance: The wear resistance of HDPE pipe is more than 4 times of steel pipe, and the friction coefficient is smaller than steel pipe, which can improve the conveying capacity by about 20%.
  • 6. The operating temperature: from -40℃ to 60℃, which can adapt to harsh climate and temperature changes. The engineering cost is low, the efficiency is high, and it is more convenient.
  • 7. Long service life.

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Specifications of High Density Polyethylene Dredging Pipe

ISO 4427 Pipe Series S 16 S 12,5 S 10 S 8 S 6,3 S 5 S 4 S 3.2
ASTM F714 DR DR 33 DR 26 DR 21 DR 17 DR 13.6 DR 11 DR 9 DR 7.4
Nominal Pressure PE 100 PN5 PN6 PN8 PN10 PN12.5 PN16 PN20 PN25
Nominal Size DN (mm) Equiv Size (in) Wall Thickness(mm)
90 3.54 2.73 3.5 4.3 5.4 6.7 8.2 10.1 12.3
110 4.33 3.33 4.2 5.3 6.6 8.1 10 12.3 15.1
125 4.92 3.79 4.8 6 7.4 9.2 11.4 14 17.1
140 5.51 4.24 5.4 6.7 8.3 10.3 12.7 15.7 19.2
160 6.3 4.85 6.2 7.7 9.5 11.8 14.6 17.9 21.9
180 7.09 5.45 6.9 8.6 10.7 13.3 16.4 20.1 24.6
200 7.87 6.06 7.7 9.6 11.9 14.7 18.2 22.4 27.4
225 8.86 6.82 8.6 10.8 13.4 16.6 20.5 25.2 30.8
250 9.84 7.58 9.6 11.9 14.8 18.4 22.7 27.9 34.2
280 11.02 8.48 10.7 13.4 16.6 20.6 25.4 31.3 38.3
315 12.4 9.7 12.1 15 18.7 23.2 28.6 35.2 43.1
355 13.98 10.9 13.6 16.9 21.1 26.1 32.2 39.7 48.5
400 15.75 12.3 15.3 19.1 23.7 29.4 36.3 44.7 54.7
450 17.72 13.8 17.2 21.5 26.7 33.1 40.9 50.3 61.5
500 19.69 15.3 19.1 23.9 29.7 36.8 45.4 55.8 67.6
560 22.05 17.2 21.4 26.7 33.2 41.2 50.8 62.5 75.7
630 24.8 19.3 24.1 30 37.4 46.3 57.2 70.3 85.1
710 27.95 21.8 27.2 33.9 42.1 52.2 64.5 79.3 95.9
800 31.5 24.5 30.6 38.1 47.4 58.8 72.6 89.3
900 35.43 27.6 34.4 42.9 53.3 66.2 81.7
1000 39.37 30.6 38.2 47.7 59.3 72.5 90.2
1200 47.24 36.7 45.9 57.2 67.9 88.2
1400 55.12 42.9 53.5 66.7 82.4 102.9
1600 62.99 61.2 76.2 94.1 117.6
1800 70.86 69.1 85.7 105.9
2000 78.74 76.9 95.2 117.6

Welcome to contact us for products details and professional service.

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

Def Pipeline invests a lot of money in product research and development and technological innovation every year to implement modern manufacturing processes, improve production efficiency and service quality to ensure that DEF is always in the leading position in the industry. Def Pipeline pays attention to the innovation of products and the durability of service life in the design and development. We pay attention to the safety of the production process and the precision of processing in the production process. And pays attention to excellence and high-end product quality in the inspection process. Def Pipeline focuses on the future needs of the market. With our rich product portfolio of HDPE pipe & fittings and professional technical knowledge, Def Pipeline provides product technical and price support at every customer project stage. Def Pipeline helps customers make the plan to reduce the procurement cost and installation costs reasonably.

  • HDPE Butt Fusion welding Fittings

  • HDPE Fabricated Segments Fittings

  • High Pressure HDPE Fittings SDR9, SDR7.4

  • HDPE Electrofusion Fittings with bar code

  • HDPE Socket Fusion Fittings

  • Polypropylene(PP) Compression Fittings

  • HDPE Pipe for Water and Gas

  • HDPE Pipe for Drinking Water

  • HDPE Pipe for Natural Gas & Oil

  • HDPE Pipe for fire fighting applications

  • HDPE Pipe for Drainage/ Sewer

  • PE100-RC HDPE Pipes for Water & Gas Gas

  • HDPE Pipe for Cable Protection

  • HDPE Pipe for Mining

  • HDPE Pipe for Dredging

  • HDPE Pipe for Irrigation

  • HDPE Silicon Core Pipe

  • HDPE Trenchless Pipe For HDD

Please send email to:   jolin@defpipe.com   Or   (WhatsApp):  +86 13298353566.

High Density Polyethylene (HDPE) Dredging Pipes and Fittings



The following are the specifications of High Density Polyethylene (HDPE) Dredging Pipes and Fittings of different standards. Technical parameters, pictures and technical brochure as below for online preview and download.
